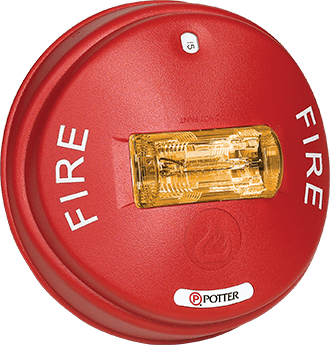

CCS-24 Series

Ceiling Mount Colored Lens Strobe

The Potter CCS Colored Lens Series are ceiling mount strobe or horn/strobe combinations that offer dependable audible and visual alarms for warning and emergency notification. Applications include emergency communication, severe weather, emergency response, and many more.

The Colored Lens Series are 24VDC appliances available in lens colors of amber, blue, green and red. The series offers tamperproof field selectable candela options of 15, 30, 75, 95 and 115 candela. The CCS Colored Lens Series has a minimal operating current and has a minimum flash rate of 1Hz within the listed voltage range.

The CCS Colored Lens Series is shipped with a die cast 4" mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism that secures the product to the bracket without showing any screws.

The Colored Lens Series also features the patented Checkmate®- Instant Voltage Verification Feature which allows the installer to check the voltage without removing the signal.

The Colored Lens Series appliances are ANSI/UL 1638 and ANSI/UL 464 listed and is warranted for five years from the date of purchase.
