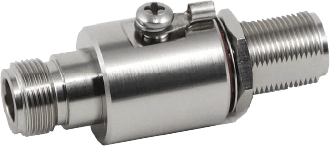

LP-N
Lightning Surge Protector
The LP-N coaxial lightning surge protector functions as a signal filter, allowing the passage of desired frequencies while redirecting electrical surges from lightning strikes safely to ground. It features N-Female connectors on both ends for easy inline installation in coaxial systems.
Features
- Inline coaxial surge protection for RF systems
- Wideband performance from DC to 3000 MHz
- N-Female to N-Female connectors for easy inline installation
- High surge handling: 10/20 KA discharge current
- Insertion loss ≤0.5 dB for minimal signal impact
- VSWR ≤1.20
- Initial discharge voltage: 230 V
- Compact and durable: 110 g body, 50 Ω impedance
- AC withstand voltage: 2500 V for 1 minute without arcing
Documents & Resources
Related Products

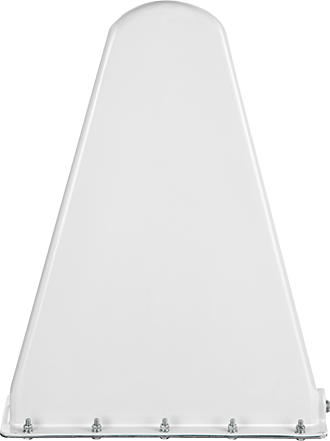

DONOR-UHF-8-4
UHF Donor Antenna

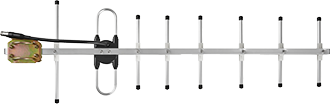

DONOR-UHF-YAGI
UHF Band Donor Antenna

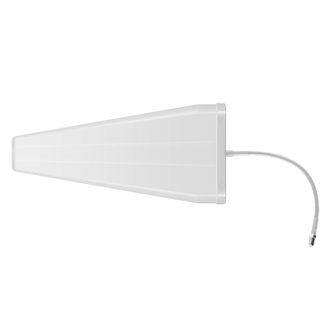

DONOR-698-960-8
