LCD Annunciator for PFC-8500

Canadian Only

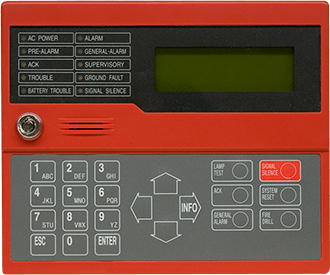

The LCD-AN is a LCD remote annunciator for the PFC-8060 and PFC-8500 addressable fire control panel. The LCD-AN communicates using a RS-485 connection to the main panel providing common indication of Alarms, Supervisory, Trouble and other system status and control functions. The LCD-AN features a 20x4 LCD display with LED's for Power, Alarm, Supervisory, Trouble, and Silenced conditions. It can be mounted on a 2-gang electrical box or a standard 4" sqaure electrical box. The keypad is only operable when a keylocked security switch is set to the enable position.
