LED-AN

LED Annunciator for PFC-8500

Canadian Only

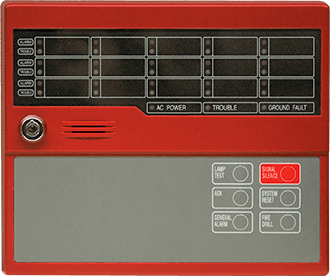

The LED-AN is a LED remote annunciator for the PFC-8060 and PFC-8500 addressable fire control panel. The LED-AN communicates using a RS-485 connection to the main panel providing common indication of Alarms, Supervisory, Trouble and other system status and control functions.

The LED-AN features 14 front panel L.E.D.s with LED's for Power, Alarm, Supervisory, Trouble, and Silenced conditions. It can be mounted on a 2-gang electrical box or a standard 4" sqaure electrical box. The keypad is only operable when a key-locked security switch is set to the enable position.
