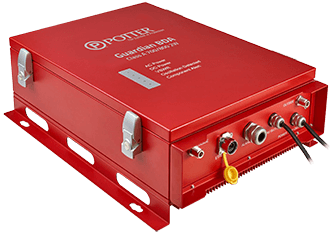

GUARDIAN-A G2 is a dual-band, 2 W, 90 dB Digital Class A public safety BDA for 700 and 800 MHz in-building radio coverage. Its WebGUI provides 100% digital configuration and point-and-click firmware updates. Uplink muting disables the uplink amplifier when RF energy is below a user-set threshold, while Automatic Level Control maintains uplink power at or below the specified limit. Additional enhancements include SNMP remote monitoring, P25 Phase II support, advanced per-channel AGC, integrated alarming, backup-power connectivity, and a rugged NEMA Type 4 enclosure.

Features & Benefits

• WebGUI Configuration and Updates
  • Use 100% digital configuration and point-and-click firmware updates without DIP switches or manual programming
• Uplink Muting
  • Disable the uplink amplifier when RF energy is below the user-set threshold to reduce interference and improve system performance
• Automatic Level Control
  • Maintain uplink power at or below a user-set threshold to meet AHJ uplink power requirements
• SNMP and P25 Phase II Support
  • Use predefined MIBs for third-party remote monitoring and support P25 Phase II digital systems with 2 x 6.25 kHz timeslots
• Per-Channel AGC and System Protection
  • Self-adjusting gain, integrated alarming, a compatible UPS connection, and a rugged NEMA Type 4 enclosure support the installed system

---

Documents & Resources

---

Software

Sentry Client This software requires the corresponding Sentry Client Drivers in order to run properly.	exe | zip	2.89
Sentry Client Drivers	exe | zip	2.08.28

---

Literature
