EVAX Series Conventional Voice Systems
Standalone voice evacuation, built for today's installers.
EVAX Series Conventional Voice Systems provide installers and building owners with a modern, cost-effective platform for standalone voice evacuation. Three models cover applications ranging from single-zone retrofits to larger multi-amplifier installations.
Text-to-speech allows installers to create custom messages in seconds, and field programming replaces the legacy process of configuration forms and factory-loaded message chips. They are compatible with any UL-compliant fire alarm control panel, integrating into retrofit projects where replacing the existing system is not an option. The EVAX Series is well suited for schools, daycares, theaters, churches, restaurants, and other small to medium commercial applications.

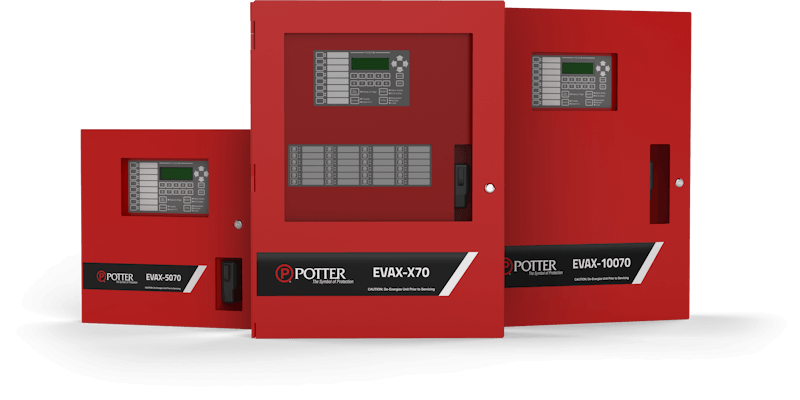

Model Lineup
EVAX-5070
- 50W single-channel amplifier
- 4 speaker circuits
- Supports up to 10 remote microphones and 1 PSN-1000
EVAX-5070
The EVAX-5070 conventional voice panel is designed to notify and safely evacuate building occupancy during emergency events. The panel offers innovative features to provide reliability and safety of personnel. Included is a 50W single channel amplifier with on-board speaker outputs, trigger inputs, relay outputs, an auxiliary input, and Potter’s proprietary P-Link and V-Link bus.
The Potter Panel Programmer comprises the state-of-the-art Audio Patterns feature which allows users to select and create audio files easily and effectively from the user’s laptop. The programmer offers an internal library of predefined message and tones for common emergency conditions. Audio Patterns provides the ability to conveniently record and import audio files directly from a laptop. The exclusive Text-To-Speech feature translates custom digital text into fluent and natural sounding voices. Offering multiple voices and languages to accommodate customer preferences.
Features:
- 50W, Single Channel Amplifier
- Microphone Included
- 120VAC or 240VAC selectable
- 4 Class B or 4 Class A speaker outputs
- Selectable for 25V or 70V
- 4 inputs for message activation
- Trouble, AC, and ECS relay outputs
- 1VRMS auxiliary input to receive audio from external audio sources
- P-Link communication bus (Class A or Class B) to connect accessories for system expansion
- V-Link audio bus (Class A or Class B)
- Connect up to ten (10) RM-1000ECS/RM-1000ECSTL remote microphones
- Connect one (1) PSN-1000
- 4x20 User Interface (80 Characters)
- 8 Programmable Soft Keys
- Up to 60 minutes of message storage
- Text-to-speech to translate custom text through a variety of natural and fluent sounding voices
- Internal message library of predefined messages and tones
- UL 864 / UL 2572 / UL 464
Documents & Resources
EVAX-10070
- 100W total with the included SCA-5070INT internal amplifier
- 8 speaker circuits
- Supports up to 10 remote microphones and 1 PSN-1000
EVAX-10070
The EVAX-10070 conventional voice panel is designed to notify and safely evacuate building occupancy during emergency events. The panel offers new innovative features to provide reliability and safety of personnel. Included is a 100W single channel amplifier with on-board speaker outputs, trigger inputs, relay outputs, an auxiliary input, and Potter’s proprietary P-Link and V-Link bus.
The Potter Panel Programmer comprises the state-of-the-art Audio Patterns feature which allows users to select and create audio files easily and effectively from the user’s laptop. The programmer offers an internal library of predefined message and tones for common emergency conditions. Audio Patterns provides the ability to conveniently record and import audio files directly from a laptop. The exclusive Text-To-Speech feature translates custom digital text into fluent and natural sounding voices. Offering multiple voices and languages to accommodate customer preferences.
Features:
- 100W, Single Channel
- Microphone Included
- 120VAC or 240VAC selectable
- 8 Class B or 8 Class A speaker outputs
- Selectable for 25V or 70V
- 4 inputs for message activation
- Trouble, AC, and ECS relay outputs
- 1VRMS auxiliary input to receive audio from external audio sources
- P-Link communication bus (Class A or Class B) to connect accessories for system expansion
- V-Link audio bus (Class A or Class B)
- Connect up to ten (10) RM-1000ECS/RM-1000ECSTL remote microphones
- Connect one (1) PSN-1000
- 4x20 User Interface (80 Characters)
- 8 Programmable Soft Keys
- Up to 60 minutes of message storage
- Text-to-speech to translate custom text through a variety of natural and fluent sounding voices
- Internal message library of predefined messages and tones
- UL 864 / UL 2572 / UL 464
Documents & Resources
EVAX-X70
- 50W base, expandable with up to 10 SCA or DCA amplifiers (up to ~2,100W distributed)
- Supports FFT-1000 firefighter telephone, up to 10 CIM-16 input modules, and an SB-24 switch board
EVAX-X70
The EVAX-X70 conventional voice panel is designed to notify and safely evacuate building occupancy during emergency events. The panel offers innovative features to provide reliability and safety of personnel. Included is a 50W single channel amplifier with on-board speaker outputs, trigger inputs, relay outputs, an auxiliary input, and Potter’s proprietary P-Link and V-Link bus.
The Potter Panel Programmer comprises the state-of-the-art Audio Patterns feature which allows users to select and create audio files easily and effectively from the user’s laptop. The programmer offers an internal library of predefined message and tones for common emergency conditions. Audio Patterns provides the ability to conveniently record and import audio files directly from a laptop. The exclusive Text-To-Speech feature translates custom digital text into fluent and natural sounding voices. Offering multiple voices and languages to accommodate customer preferences.
Features:
- 50W, Single Channel Amplifier (Expandable)
- Microphone Included
- 120VAC or 240VAC selectable
- 4 Class B or 4 Class A speaker outputs
- Selectable for 25V or 70V
- 4 inputs for message activation
- Trouble, AC, and ECS relay outputs
- 1VRMS auxiliary input to receive audio from external audio sources
- P-Link communication bus (Class A or Class B) to connect accessories for system expansion
- V-Link audio bus (Class A or Class B) • Connect up to ten (10) SCA or DCA amplifiers
- Remote Amplifier Expansion using SCA and DCA Amplifiers
- Connect up to ten (10) RM-1000ECS/RM-1000ECSTL remote microphones
- Connect One (1) FFT-1000 for firefighter telephone communication
- Connect one (1) PSN-1000
- Connect up to ten (10) CIM-16 Contact Input Modules
- 4x20 User Interface (80 Characters)
- 8 Programmable Soft Keys
- Up to 60 minutes of message storage
- Text-to-speech to translate custom text through a variety of natural and fluent sounding voices
- Record and import messages from laptop
- Internal message library of predefined messages and tones
- UL 864 / UL 2572 / UL 464
Documents & Resources
Key Features
Text-to-speech
Type a custom message and the programmer instantly converts it into a fluent, natural-sounding voice recording—no studio or voice talent needed. Multiple voice and language options are available, plus a built-in library of predefined messages and tones.
Field programmable
Build, edit, and upload custom messages and settings right from a laptop on the job site using the Potter Panel Programmer. No configuration forms sent to the factory, no waiting on a chip to change a message—you own the program.
Clear system status
The 4x20, 80-character LCD shows system status and trouble conditions in plain text, telling you exactly what the fault is and which zone it's in. No counting LED flashes or decoding fault codes like traditional panels, so troubleshooting is faster and easier.
Fully certified
Certified to the key life-safety standards—UL 864 for fire alarm control units, UL 2572 for mass notification, and UL 464 for audible signaling—along with FCC compliance. Listed for both fire evacuation and emergency communication applications.
Accessories and Compatible Devices

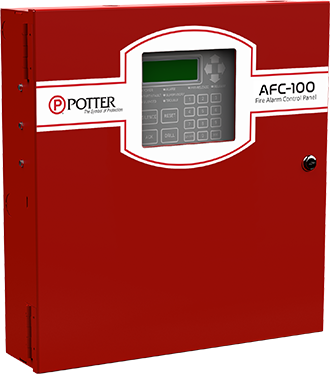

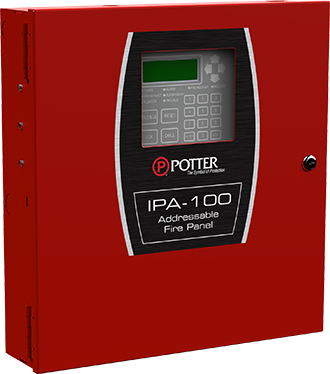

Compatible with Potter's IPA and AFC fire alarm systems and any UL-compliant fire alarm control panel
Firefighter telephone (FFT-1000) support on the EVAX-X70 for two-way emergency communication
FFT-1000
The FFT-1000 Fire Fighter Telephone panel allows users from remote areas to effectively communicate with the FFT-1000 panel. The panel utilizes fireman’s phone jacks and remote fireman’s handsets to establish 2-way communication from the remote areas to the FFT1000. The panel can communicate in conjunction with the IPA-400V via P-Link or operate as a standalone system. The panel is equipped with 24 Class B or 12 Class A phone circuits and is expandable by using the FFT-EXP.
Features:
- Fire Fighter Telephone System
- Option for right hinge or left hinge door
- Right hinge and left hinge door orientation for accessible
- mounting next to voice panel
- 24 Class B or 12 Class A phone circuits
- Expandable up 96 Class A or 96 Class B phone circuits
- P-Link device
- Operates as standalone system
- Trouble and Low AC Relay
Documents & Resources
Supports 1 PSN-1000E for AV power and cross-platform strobe synchronization
PSN-1000(E)
The PSN-1000 series is a UL listed intelligent 10 amp notification power supply and P-Link (RS-485) repeater. The power supply connects to the P-Link bus from the control panel and is operated and supervised from the panel. The power supply may be installed 6,500 feet from the control panel. The PSN-1000 then repeats the P-Link communication for another 6,500 feet.
The power supply has six (6) Class B or three (3) Class A power outputs. Each output is regulated and power limited with a 3 Amp maximum rating. In addition, the PSN-1000 has two (2) programmable dry contact inputs. The dry contact inputs are Class B, supervised inputs.
Each output can be independently configured to provide one of four synchronization patterns, constant power, ANSI temporal Code 3 or Door Holder power. Using our patented Quadrasync technology, the panel can be configured to synchronize Potter/AMSECO®, Gentex®, Cooper Wheelock® and System Sensor®.
The power supply operates on either 120 or 220 VAC power and has a regulated 24 VDC output. In addition, the panel can charge up to 55 AH batteries and will house 18 AH batteries.
Documents & Resources
Supports up to 10 RM-1000ECS remote microphones
RM-1000ECS
The RM-1000ECS remote microphone allows the operator to page and activate ECS messages to desired speaker circuits from a remote area. The remote microphone is equipped with an SB-8 voice user interface which provides 8 programmable soft keys. It is enclosed in a sheet metal enclosure and is equipped with a microphone. The RM-1000ECS is a PLink device and communicates with the control panel via the 4-wire RS-485 connection and distributes paging audio through the V-Link 1 and V-Link 2 audio riser. A maximum of 30 RM-1000ECS can be connected to a voice system. The remote microphone provides LED indication for Power and Ready to Page.
Features
- Remote microphone with eight (8) soft keys
- Equipped with microphone
- Remote microphone prioritization using Potter Fire Programmer
- P-Link Device - 30 remote microphones per panel
- Status and Trouble LED indicators
- ThumbLock option
- The product includes a 5-year warranty
- Network Paging and Network ECS
Documents & Resources
100W total with the included SCA-5070INT internal amplifier
SCA-5070INT
The SCA-5070INT is a small form single channel 50W amplifier that can be mounted in the IPA-4000V, AFC-1000V, LOC- 1000 and PSN-1000E. The amplifier is mounted to an exclusive stacker bracket for secure and accessible mounting. The SCA-5070INT provides 4 Class B or 4 Class A speaker circuits. The SCA-5070INT communicates via the P-Link communication bus and audio is distributed through the V-Link 1 audio riser. The amplifier is powered by a constant 24VDC provided by the fire panel or PSN-1000 NAC circuit. The SCA-5070INT can support either 25V or 70V speaker circuits. The speaker circuit voltage is set using the panel programming software. The IPA-4000V supports up to thirty-one (31) amplifiers and the AFC-1000V supports up to 10 amplifiers. All circuits are power-limited and supervised.
Features
- Small form 50W amplifier
- Single Channel
- 25VRMS and 70VRMS selectable
- 4 Class B or 4 Class A speaker outputs
- P-Link device
- Equipped with stacker bracket for secure and accessible mounting
- May mount in IPA-4000V, AFC-1000V, LOC-1000 and PSN-1000E
- The IPA-4000V, AFC-1000V and LOC-1000 can house (1) one SCA-5070INT
- The PSN-1000E can house a maximum of (2) two SCA 5070INT
Documents & Resources
Supports up to 10 CIM-16 contact input modules

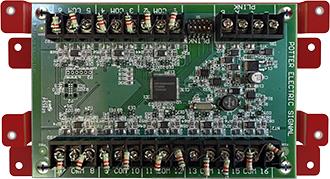

CIM-16
The CIM-16 input module provides 16 inputs which are activated via normally open dry contacts. A contact closure between the selected input point and common will activate the input. The CIM-16 communicates through the P-Link communication bus. The inputs are power limited and supervised. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
Features
- The CIM-16 offers 16 programmable normally open dry contacts.
- Compatible with EVAX-X70 voice panel
- Functions: Message Activation, Disable Inputs and Outputs, Auxiliary Input Trigger
