AFC Series Addressable Fire Alarm Systems
Potter's AFC fire systems use state-of-the-art addressable sensors and control modules which utilize the robust PAD protocol to provide you the flexibility needed to tackle demanding applications. From 60 to 1,270 addressable points, you can be sure that your AFC fire system is ready to tackle jobs of any size and scope. With industry leading IP technology, take advantage of Potter's multiple remote monitoring and control solutions as well as email notifications and reminders.

- 127 up to 1,270 Addresses
- 6 Programmable NACs
- 10A Power Supply
- 4 I/O Circuits
- Listed for Sprinkler Pre-action and Deluge Systems
AFC-1000
The AFC-1000 is an expandable analog/addressable releasing fire alarm system with a total system capacity of 1270 addresses. Additional capacity on the system is achieved using multi-point SLC modules The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules. The system is expandable with a total of nine additional addressable Signaling Line Circuits (SLC) each with a maximum of 127 devices. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).
The AFC-1000 has a 10 Amp power supply with six Notification Appliance Circuits (NACs) and four Input/Output (I/O) circuits. The NACs are rated at 3 Amps each and the I/Os are rated at 1 Amp each. Each output is regulated and power limited. In addition, each output is uniquely programmable and may be configured for steady signal, strobe synchronization, constant power, door holder power, or releasing. The strobe synchronization includes Gentex, AMSECO, System Sensor and Cooper/Wheelock and with the exclusive Quadrasync each output may have a unique brand and all strobes will flash together. The I/Os are designed for inputs such as manual release stations and abort switches that will not require polling and react nearly instantaneously.
The NACs may be expanded using the PSN-1000 series intelligent power supplies. Each PSN-1000 adds another 10 Amps of power, 2 additional input circuits and the AFC-1000 will support up to 31 power supplies. The system will synchronize the strobes system wide. In addition, the PSN-1000E has space to allow the installation of up to six PAD100-SLCE SLC loop expansion cards. The cards mount on a stacker bracket that allows access to all SLC circuit connections.

Documents & Resources
- Datasheet
- Datasheet (Spanish)
- Datasheet (Portuguese)
- Datasheet - City of Chicago
- Manual
- Specification
- Drawing
- CSFM: 0328-0509
- 6256-FDNY
- Operating Instructions
- Calculator
- Calculator - P-Link Circuits
- Manual - Compatible Releasing Devices
- NAC Compatibility
- Potter Update Utility Technical Guide
- Reporting Codes
- BIM
- Sales Flyer
- Datasheet - EOL Supervisory Devices

- Expandable design with optional PSK-1000B or SCUI-1000B for integrated programmable soft keys or smoke control zones
- 127 up to 1,270 Addresses
- 6 Programmable NACs
- 10A Power Supply
- 4 I/O Circuits
- Listed for Sprinkler Pre-action and Deluge Systems
AFC-1000E
The AFC-1000E is an expandable analog/addressable releasing fire alarm system with a total system capacity of 1,270 addresses. Additional capacity on the system is achieved using multi-point SLC modules The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).
The AFC-1000E has a 10 Amp power supply with six Notification Appliance Circuits (NACs) and four Input/Output (I/O) circuits.The NACs are rated at 3 Amps each and the I/Os are rated at 1 Amp each. Each output is regulated and power limited. In addition, each output is uniquely programmable and may be configured for steady signal, strobe synchronization, constant power, door holder power, or releasing. The strobe synchronization includes Gentex, AMSECO, System Sensor and Cooper/Wheelock and with the exclusive Quadrasync each output may have a unique brand and all strobes will flash together.
The NACs may be expanded using the PSN-1000 series intelligent power supplies. Each PSN-1000 adds another 10 Amps of power, 2 additional input circuits and the AFC-1000E will support up to 31 power supplies. The system will synchronize the strobes system wide. In addition, the PSN-1000E has space to allow the installation of up to six PAD100-SLCE SLC loop expansion cards. The cards mount on a stacker bracket that allows access to all SLC circuit connections.
The AFC-1000E enclosure allows integration of the PSK-1000B which offers 16 programmable soft keys to manually control zones. Soft keys can be expanded by adding remote PSK-1000’s. All zones can be configured using the Potter programming tool.

Documents & Resources

- 100 Addresses
- 2 Programmable NACs
- 5A Power Supply
- 2 I/O Circuits
- Listed for Sprinkler Pre-action and Deluge Systems
AFC-100
The AFC-100 is an analog/addressable fire alarm system with a total system capacity of 100 addresses. Additional capacity on the system is achieved using multi-point SLC modules. The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).
The AFC-100 has a 5 Amp power supply with two Notification Appliance Circuits (NACs) and two Input/Output (I/O) circuits. The NACs are rated at 3 Amps each and the I/Os are rated at 1 Amp each. Each output is regulated and power limited. In addition, each output is uniquely programmable and may be configured for steady signal, strobe synchronization, constant power, door holder power, or releasing. The strobe synchronization includes Gentex, AMSECO, System Sensor and Cooper/Wheelock and with the exclusive Quadrasync each output may have a unique brand and all strobes will flash together.
The NACs may be expanded using the PSN-1000 series intelligent power supplies. Each PSN-1000 adds another 10 Amps of power, 2 additional input circuits and the AFC-100 will support up to 31 power supplies. The system will synchronize the strobes system wide. In addition, the PSN-1000E has space to allow the installation of up to six loop expansion cards. The cards mount on a stacker bracket that allows access to all SLC circuit connections.
For more information on AFC Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
- Datasheet
- Datasheet (Spanish)
- Datasheet (Portuguese)
- Manual
- Manual - Manual de Instalación (Spanish)
- Manual - Manual de Instalação (Portuguese)
- Specification
- Drawing
- CSFM: 0328-0509
- 6256-FDNY
- Calculator
- Calculator - P-Link Circuits
- Manual - Compatible Releasing Devices
- NAC Compatibility
- Potter Update Utility Technical Guide
- Reporting Codes
- BIM
- Sales Flyer
- Datasheet - EOL Supervisory Devices

- 50 Addresses
- 2 Programmable NACs
- 5A Power Supply
- 2 I/O Circuits
- Listed for Sprinkler Pre-action and Deluge Systems
AFC-50
The AFC-50 is an analog/addressable fire alarm system with a total system capacity of 50 addresses. Additional capacity on the system is achieved using multi-point SLC modules. The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).
The AFC-50 has a 5 Amp power supply with two Notification Appliance Circuits (NACs) and two Input/Output (I/O) circuits. The NACs are rated at 3 Amps each and the I/Os are rated at 1 Amp each. Each output is regulated and power limited. In addition, each output is uniquely programmable and may be configured for steady signal, strobe synchronization, constant power, door holder power, or releasing. The strobe synchronization includes Gentex, AMSECO, System Sensor and Cooper/Wheelock and with the exclusive Quadrasync each output may have a unique brand and all strobes will flash together.
The NACs may be expanded using the PSN-1000 series intelligent power supplies. Each PSN-1000 adds another 10 Amps of power, 2 additional input circuits and the AFC-50 will support up to 31 power supplies. The system will synchronize the strobes system wide. In addition, the PSN-1000E has space to allow the installation of up to six expansion cards. The cards mount on a stacker bracket that allows access to all circuit connections
For more information on AFC Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
- Datasheet
- Datasheet (Spanish)
- Datasheet (Portuguese)
- Manual
- Manual - Manual de Instalación (Spanish)
- Manual - Manual de Instalação (Portuguese)
- Specification
- Drawing
- CSFM: 0328-0509
- 6256-FDNY
- Calculator
- Calculator - P-Link Circuits
- Manual - Compatible Releasing Devices
- NAC Compatibility
- Potter Update Utility Technical Guide
- Reporting Codes
- BIM
- Sales Flyer
- Datasheet - EOL Supervisory Devices

- 100 Addresses
- 2 Programmable NACs
- 5A Power Supply
- 2 I/O Circuits
- Listed for Clean Agent Releasing Systems

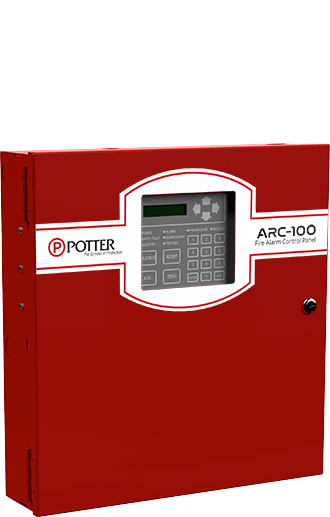

ARC-100
The ARC-100 is an analog/addressable releasing fire alarm system with a total system capacity of 100 addresses. Additional capacity on the system is achieved using multi-point SLC modules. The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).
The ARC-100 has a 5 Amp power supply with two Notification Appliance Circuits (NACs) and two Input/Output (I/O) circuits. The NACs are rated at 3 Amps each and the I/Os are rated at 1 Amp each. Each output is regulated and power limited. In addition, each output is uniquely programmable and may be configured for steady signal, strobe synchronization, constant power, door holder power, or releasing. The strobe synchronization includes Gentex, AMSECO, System Sensor and Cooper/Wheelock and with the exclusive Quadrasync each output may have a unique brand and all strobes will flash together. The I/Os are designed for inputs such as manual release stations and abort switches that will not require polling and react nearly instantaneously.
The ARC-100 is listed for releasing of fire suppression systems. The software allows cross zones, counting zones, and timers for suppression. The system is capable of multiple release outputs across multiple hazards. In addition, the PSN-1000 may be used to extend releasing capability. The NACs may be expanded using the PSN-1000 series intelligent power supplies. Each PSN-1000 adds another 10 Amps of power, 2 additional input circuits and the ARC-100 will support up to 31 power supplies. The system will synchronize the strobes system wide. In addition, the PSN-1000E has space to allow the installation of up to six loop expansion cards. The cards mount on a stacker bracket that allows access to all SLC circuit connections.
For more information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
- Datasheet
- Datasheet (Spanish)
- Datasheet (Portuguese)
- Manual
- Manual - Manual de Instalación (Spanish)
- Manual - Manual de Instalação (Portuguese)
- Specification
- Drawing
- CSFM: 0328-0509
- 6256-FDNY
- Calculator
- Calculator - P-Link Circuits
- Manual - Compatible Releasing Devices
- NAC Compatibility
- Potter Update Utility Technical Guide
- BIM
- Reporting Codes
- STAT-X Technical Bulletin
- Sales Flyer
- Datasheet - EOL Supervisory Devices
Peripheral Devices

P-Link Circuit
The P-Link circuit is a 4-terminal connection that provides both power and data between fire alarm control panels, power expanders, and accessory devices in the field. Each P-Link connection is rated 1 amp at 24 volts and can span a maximum of 6500 feet between any P-Link device. The PSN-1000(E) power expander acts as a P-Link repeater and can provide additional power and distance. Greater distances can also be achieved with the FIB-1000 fiber interface module and fiber optic cabling.

IDC-6
Initiating Device Circuit Expander

RA-6075R
LCD Releasing Annunciator

RA-6500R
LCD Releasing Annunciator

PAD100-SLCE
Addressable Loop Expander

LED-16
16 Zone LED Annunciator

FCB-1000
Fire Communications Bridge

FIB-1000
Fiber Interface Bridge

DRV-50
LED Driver Module

MC-1000
Multi-Connect Expander

RLY-5
Relay Expander

SPG-1000
Serial Parallel Gateway

SLCE-127
SLC Loop Expander

PSK-1000
Programmable Soft Keys

SCUI-1000
Smoke Control User Interface
IDC-6
The Initiating Device Circuit Expander (IDC-6) provides an additional 6 inputs per module. The panel supports up to thirty-one (31) IDC-6 modules. The circuits are power-limited and supervised. All inputs are suitable to monitor 2-wire smoke detectors. Smoke detectors shall be installed in compliance with NFPA 72. Inputs can also be used for automatic, manual, waterflow or supervisory service. The IDC-6 communicates via the PLink communication bus. The IDC-6 can be mounted in either the control panel cabinet, the intelligent power supply, AE-2, AE-8 or the AE-14 expander cabinet. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
RA-6075R
The RA-6075R is a LCD remote annunciator for the PFC-6075R addressable releasing fire control panel. The RA-6075R communicates using a RS-485 connection to the main panel providing common indication of Alarms, Supervisory, Trouble and other system status and control functions.
The RA-6075R features a 16x2 LCD display with LED's for Power, Alarm, Supervisory, Trouble, and Silenced conditions. It also provides Release and Pre-Release LED's to indicate releasing status. It can be mounted on a single gang electrical box or a two square electrical box. The annunciator is enclosed in a sheet metal enclosure and has a Potter lock securing the keypad.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
RA-6500R
The RA-6500R is a LCD remote annunciator for the PFC-6000 series fire control panels. The RA-6500R communicates using a RS-485 connection to the main panel providing common indication of Alarms, Supervisory, Trouble and other system status and control functions. The RA-6500R features a 4x40 LCD display with LED's for Power, Alarm, Supervisory, Trouble, and Silenced conditions. It can be mounted on a single gang electrical box or a four square electrical box. The annunciator is enclosed in a sheet metal enclosure and has a Potter lock securing the keypad.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
PAD100-SLCE
The Signaling Line Circuit Expander PAD100-SLCE allows up to thirty one additional loops. Each loop adds 127 addressable sensors or modules in any combination. The PAD100-SLCE may be configured for Class A or Class B wiring without the need for additional modules. The PAD100-SLCE communicates with the control panel via the Potter P-Link communication bus. The loop adder is mounted in either the control panel cabinet, the intelligent power supply, AE-2, AE-8 or the AE-14 expander cabinet. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
LED-16
The LED-16 is a LED remote annunciator for the PFC-6000 and Potter Plus Series addressable fire control panels. The LED-16 communicates using a RS-485 connection to the main panel providing zone specific indication of Alarm, Supervisory, Trouble conditions.
The LED-16 features 2 slide-in labels allowing each of the 16 zones to be customized for any application. It can be mounted on a single gang electrical box or a four-square electrical box. The annunciator utilizes a sheet metal enclosure secured with a Potter lock.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
FCB-1000
The Fire Communications Bridge (FCB-1000) allows the final network/Ethernet connection to be located away from the main panel and is compatible with all PFC-6000 and Potter Plus series addressable fire control panels. The FCB-1000 may be mounted into either the control panel cabinet, the intelligent power supply/P-Link repeater, the PSN-1000/E, the AE-8 or the AE-14 accessory cabinet. The FCB-1000RM includes a 19-inch rack mount kit for installation into an equipment rack. Each card is mounted to the exclusive stacker bracket for secure and accessible mounting.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
FIB-1000
The FIB-1000 Fiber Interface Bridge allows the RS-485 P-Link bus to be converted into or from the fiber optic cable. It is fully supervised and is capable of both Class B and Class A operation. The FIB-1000 may be mounted in either the control panel cabinet, the intelligent power supply/P-Link repeat, the PSN-1000/E, the AE-8 or AE-14 accessory enclosure. The FIB-1000RM includes a 19-inch rack-mount kit for installation in an equipment rack. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
DRV-50
The DRV-50 is a LED driver module for the PFC-6000 and Potter Plus series addressable fire control panels. The DRV-50 communicates using a RS-485 connection to the panel providing 50 user configurable LED outputs and 4 supervised dry contact inputs. The LED Driver is mounted in either the control panel cabinet, the intelligent power supply/P Link repeater, the PSN-1000/E, the AE-8, or the AE-14 expander cabinet. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
MC-1000
The Multi-Connect Expander (MC-1000) allows up to sixty-three (63) IPA and AFC/ARC series fire alarm control panels to share a single reporting technology. Each MC-1000 supports communication between the host reporting panel and two client panels. The MC-1000 communicates with the host and client control panels via the Potter P-Link communication bus. The MC-1000 can be mounted in either the control panel cabinet, the intelligent power supply/P-Link repeater, the PSN-1000E, AE-2, AE-8 or the AE-14 expander cabinet. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
RLY-5
The RLY-5 is a relay expander for compatible Potter fire alarm control panels. The RLY-5 communicates with the control panel via the RS-485 (P-Link) communication bus providing 5 user configurable relay outputs programmable with the Potter Configuration Software.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
SPG-1000
The Serial Parallel Gateway (SPG-1000) is compatible with all PFC-6000 and Potter Plus series panels. The SPG-1000 provides real-time event logging directly to a printer. It may be mounted inside the control panel cabinet, the PSN-1000/E, the AE-8 or AE-14 accessory enclosure. The SPG-1000RM allows the SPG-1000 to be installed into an equipment rack. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
SLCE-127
The Signaling Line Circuit Expander (SLCE-127) allows for an additional loop for the PFC-6200 and up to seven additional loops for PFC-6800 fire alarm control panels. Each loop adds 127 addressable sensors or modules in any combination. The SLCE-127 may be configured for Class A or Class B wiring without the need for additional modules. The SLCE-127 communicates with the control panel via the Potter P-Link communication bus. The loop adder is mounted in either the control panel cabinet, the intelligent power supply/P-Link repeater, the PSN-1000E, AE-8 or the AE-14 expander cabinet. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
PSK-1000
The PSK-1000, programmable soft keys, provides 16 programmable push buttons to manually enable and disable zones. It is enclosed in a sheet metal enclosure and has a lock securing the push buttons. The PSK-1000 is a P-Link device and communicates with the control panel via the 4-wire RS-485 connection. A maximum of 31 PSK-1000s can be connected in a system. Each push button has a corresponding LED for status indication. In standby, the LED is off and when a programmed push button is selected it will illuminate green. The PSK-1000B, circuit board only, may be mounted in the IPA-4000E and AFC-1000E panels to offer an integrated solution using part number 3993140. The IPA-4000E and AFC-1000E can house one PSK-1000 in the panel.
Features:
- 16 programmable soft keys for manual zone control
- LEDs for status indication
- P-Link Device
- Maximum 31 PSK-1000s for: IPA-60, IPA-100, IPA-4000, IPA-4000V, IPA-4000E, AFC-50, AFC-100, AFC-1000, AFC-1000V, AFC-1000E and ARC-100
- PSK-1000B, board only, to install into IPA-4000E/AFC-1000E for an integrated solution
- The product includes a 5-year warranty

Documents & Resources
SCUI-1000
The SCUI-1000, smoke control user interface, provides 4 dedicated smoke control zones and 2 programmable push buttons to manually control zones. Each dedicated smoke control zone has 3 push buttons: Open/On, Close/Off and Auto. It is enclosed in a sheet metal enclosure and has a lock securing the push buttons. The SCUI-1000 is a P-Link device and communicates with the control panel via the 4-wire RS-485 connection. Each push button has a corresponding LED for zone status.
The SCUI-1000B, circuit board only, may be mounted in the IPA-4000E panel to offer integrated solution using part number 3993141. The IPA-4000E can house one SCUI-1000 in the panel.
Features:
- 4 dedicated smoke control zones and 2 programmable soft keys
- LEDs for status indication
- P-Link Device
- Maximum 31 SCUI-1000s for: IPA-60, IPA-100, IPA-4000, IPA-4000V and IPA-4000E
- SCUI-1000B, board only, to install into IPA-4000E panel for an integrated solution
- The product includes a 5-year warranty

Documents & Resources

SLC Loop
Potter's addressable fire systems use state-of-the-art addressable sensors and control modules which utilize the robust PAD protocol to provide you the flexibility needed to tackle demanding applications. All of Potter's new addressable fire systems use the same devices to ensure a clear migration path as your systems grow in size and scope.

PAD300-PD
Photoelectric Smoke Detector

PAD300-HD
Heat Detector

PAD300-PHD
Photoelectric Smoke/Heat Detector

PAD300-4DB/6DB
4"/6" Detector Base

PAD300-SB
Addressable Sounder Base

PAD300-LFSB
Addressable Low Frequency Sounder Base

PAD300-DD
In-Duct Smoke Detector

PAD300-DUCT
Analog Addressable Duct Detector

PAD300-DUCTR
Analog Addressable Duct Detector

PAD300-CD
Carbon Monoxide Detector

PAD300-PCD
Photoelectric Smoke/CO Detector

PAD300-RB
Addressable Relay Base

PAD300-IB
Isolator Base

PAD300-IM
Isolator Module

PAD300-HD-I
Heat Detector With Isolation

PAD300-PCD-I
Photoelectric Smoke/CO Detector With Isolation

PAD300-PD-I
Photoelectric Smoke Detector with Isolation

PAD100-LED
Addressable LED Module

PAD100-DIM
Dual Input Module

PAD100-MIM
Micro Input Module

PAD100-NAC
Notification Appliance Circuit

PAD100-OROI
One Relay One Input Module

PAD100-RM
Relay Module

PAD100-SIM
Single Input Module

PAD100-SM
Speaker Module

PAD100-TRTI
Two Relay Two Input Module

PAD100-ZM
Zone Module

PAD100-PSSA-PSDA
Addressable Pull Station Single/Dual Action

PAD100-SPKB
Speaker Base

PAD200-PCHD
Photoelectric Smoke / Heat / Carbon Monoxide Detector

PAD100-LEDK
Addressable LED with Key Switch

PAD100-DRTS
Duct Remote Test Switch
PAD300-PD
The Photoelectric Smoke Detector is a listed Analog Addressable smoke detector compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The PAD300-PD is a low profile smoke detector with a wide sensitivity range. The detector and base are made of a durable plastic in an off-white color to blend in with the ceiling. The PAD300-PD has a sensitivity range of 1.1 to 3.5 % per foot and is UL listed. The PAD300-PD features drift compensation and has built in dirty detector warning as well. The PAD300-PD and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements. The detector is compatible with any of the PAD300 series detector bases and simply twists on. The PAD300-PD is addressed using DIP switches in the rear of the detector and can be easily programmed in the field without special tools.
Features:
- Low profile, less than 2 inches with the base
- Wide selectable sensitivity range of 1.1 to 3.5%/foot
- Detector communicates sensitivity to control panel
- UL listed smoke calibration and sensitivity
- Optional locking tab to prevent unwanted removal
- Simple DIP switch address setting, no programming tool required
- Magnetic test switch
- LED alarm indicator
- Product includes 5-year warranty
- UUKL Listed for Smoke Control
- UL268 7th edition compliant

Documents & Resources
PAD300-HD
The PAD300-HD is a listed analog addressable rate of rise and/or fixed temperature heat detector compatible with any fire alarm control panel that has the Potter Addressable Device (PAD) protocol. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection. The detector and base (not included) are made of a durable plastic in an off-white to blend in with the ceiling. The PAD300-HD is UL listed with a selectable fixed temperature point from 135° to 185° Fahrenheit and can be used for rate of rise applications. See detector spacing limitations below. This flexibility allows the installer to cover a wide variety of applications with a single unit. The PAD300-HD and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements. The detector is compatible with any of the PAD300 series detector bases and simply twists on. The PAD300-HD is addressed using DIP switches in the rear of the detector and can be easily programmed in the field without special tools.
Features:
- Selectable Rate of Rise and/or Fixed Heat Detector
- Low Profile Reliable Detection Technology
- LED Alarm Indicator
- Ambient Temperature Listing of 32°F to 150°F
- Simple DIP Switch Address Setting, No Programming Tool Required
- Magnetic Test Switch
- Product includes 5-year warranty
- UUKL Listed for Smoke Control

Documents & Resources
PAD300-PHD
The PAD300-PHD is a listed Analog Addressable smoke detector and a rate of rise and/or fixed temperature heat detector compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The PAD300-PHD is a low profile smoke/heat sensor with a wide sensitivity range. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection. The detector and base are made of a durable plastic in an off-white color to blend in with the ceiling.
The PAD300-PHD is UL listed and has a sensitivity range of 1.1 to 3.5% per foot with a fix temperature alarm threshold of 135°F and can be used for rate of rise applications. See detector spacing limitations below. The PAD300-PHD features drift compensation and has built in dirty detector warning. The PAD300-PHD and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements.
The detector is compatible with any of the PAD300 series detector bases and simply twists on. The PAD300-PHD is addressed using DIP switches in the rear of the detector and can be easily programmed in the field without special tools.
Features:
- Heat Detector compliant with UL 521
- Selectable Rate of Rise and/or Fixed Heat Detector
- Reliable detection technology
- Wide selectable smoke sensitivity range of 1.1 to 3.5%/foot
- Detector communicates sensitivity to control panel
- UL listed smoke calibration and sensitivity
- Ambient temperature listing of 32 ° F to 115 ° F
- Optional locking tab to prevent unwanted removal
- Simple DIP switch address setting, no programming tool required
- LED alarm indicator
- Magnetic test switch
- Product includes 5-year warranty
- UUKL Listed for Smoke Control

Documents & Resources
PAD300-4DB/6DB
The PAD300-6DB and PAD300-4DB are low-profile, surface-mount bases used with Potter’s addressable detectors. The base uses screw clamp terminals that accept wire ranging from 22 to 12 AWG. When installed on recessed electrical boxes, the PAD300-6DB is wide enough to completely cover the back box and the immediate surrounding area. The base is equipped with a locking tab to deter unauthorized removal of the attached detector.
Features:
- Terminals marked with polarity to assist with installation
- Duplicate Terminals for In-and-out SLC Wiring
- Terminals accept 22 to 12 AWG wire sizes
- Installs on Single Gang, Double Gang, Octagon or 4” Square Box
- Locking tab prevents unauthorized detector removal
- Product includes 5-year warranty
- 6” mounting base comes with trim plate cover

Documents & Resources
PAD300-SB
The Addressable Sounder Base 6” (PAD300-SB) is a sounder base that may be utilized in a variety of applications. The base has a locking feature for the detector that may be used or removed in the field. Once the detector is removed, the sounder is accessible in the bottom of the unit. The base has an independent sounder module that may be programmed as a single station, zone or all call sounder. The PAD300-SB passes through the sound pattern sent to the sounder, therefore it may reproduce in any pattern the power supply provides. The panel will support any combination of detectors or modules on the SLC. The PAD300-SB does not consume an address on the loop and is fully programmable to operate with any input. Once activated the sounder will also follow the input from the power source and deactivate accordingly.
Features:
- Integrated Sounder in base
- UL464 and UL268 Listed
- Sounder independent of detector, allows for a single station, grouped or all-call
- May be mapped to any device connected to the control panel
- Terminals accept 22 to 12 AWG wire sizes
- Supports Class A, Class X and Class B wiring
- Does not require SLC Loop address
- UUKL Listed for Smoke Control

Documents & Resources
PAD300-LFSB
The Addressable Low Frequency Sounder Base (PAD300-LFSB) is a sounder base that may be utilized in a variety of applications. The base has a locking feature for the detector that may be used or removed in the field. Once the head is removed, the sounder is accessible in the bottom of the unit. The PAD300-LFSB low frequency sounder base is designed to meet NFPA 72 sleeping space requirements to produce a frequency of 520 Hz +/- 10% with a square wave. It is shown that a lower frequency, centered around 520 Hz, is the ideal to awaken sleeping occupants, even those with mild to severe hearing loss. The base has an independent sounder module that may be programmed as a single station, zone or all call sounder. The PAD300-LFSB passes through the sound pattern sent to the sounder, therefore it may reproduce in any pattern the power supply provides. The PAD300-LFSB does not consume an address on the loop and is fully programmable to operate with any input. Once activated the sounder will also follow the input from the power source and deactivate accordingly.
Features:
- Addressable low frequency sounder base, allows for single station, grouped or all call activation
- May be mapped to any device connected to the control panel
- Terminals accept 22 to 12 AWG wire sizes
- Supports Class A, Class X and Class B wiring
- Does not require SLC Loop address, uses PAD sub point addressing feature
- Complies with the Low Frequency Signal Requirements per NFPA 72 and UL 464 for Audible Signaling Devices
- 24 VDC Sounder base power connection supervised internally by each sounder base. No external power supervision relays required
- UUKL Listed for smoke control

Documents & Resources
PAD300-DD
The PAD300-DD is an analog addressable photoelectric duct smoke detector (in duct) or mounted in the PAD300-DUCT or PAD300- DUCTR with sampling tubes extending into or traversing a duct. This detector is compatible with any fire alarm control panel that has the Potter Addressable Device (PAD) protocol. The PAD300-DD is listed to comply with the requirements of UL 268 A. The detector and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the device. The total polling speed is less than five (5) seconds, well under the UL requirements. The detector is compatible with any of the PAD300 series detector bases and simply twists on. The PAD300-DD is addressed using DIP switches in the rear of the detector and can be easily programmed in the field without special tools.
Features:
- Low Profile
- Reliable Detection Technology
- LED Alarm Indicator
- Magnetic Test Switch
- Product includes 5-year warranty
- UUKL Listed for Smoke Control
- Approved for in-duct plenum mounted application

Documents & Resources
PAD300-DUCT
The PAD300-DUCT is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. Air sampling is accomplished by two (2) tubes which protrude into the duct. An exhaust tube of one standard length (7”) is supplied in the installation kit with the smoke duct unit. Once the duct width has been determined the air intake, sampling tubes must be ordered. Sampling tubes are supplied in three standard lengths: 2.5 ft., 5 ft., and 10 ft. and cut to size to fit the duct. Mounting the duct smoke unit is accomplished by the use of a template and two (2) sheet metal screws, which are provided. Mounting can be achieved without the removal of the clear cover which is secured by four (4) capture screws
Features:
- Detects Smoke in Building HVAC Ducts
- Ships Complete with Housing and Head
- Compatible with Addressable IPA and AFC/ARC Series Panels
- SLC In-and-out Wire Terminals
- SLC Class A, Class X & Class B
- Installation Without Removing the Head
- Listed Air Velocity of 100 to 4,000 ft/minute
- No Screens or Filters in Housing
- Durable Plastic Enclosure and Clear Cover
- Integrated Cover Tamper Switch
- UUKL Listed for Smoke Control
- Utilizes Simple Snap in Sampling Tubes STN Series
- Product includes 5-year warranty

Documents & Resources
PAD300-DUCTR
The PAD300-DUCTR is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. Air sampling is accomplished by two (2) tubes which protrude into the duct. An exhaust tube of one (1) standard length (7”) is supplied in the installation kit with the smoke duct unit. Once the duct width has been determined, the air intake sampling tubes must be ordered. Sampling tubes are supplied in three standard lengths: 2.5 ft., 5 ft., and 10 ft. and cut to size to fit the duct. Mounting the duct smoke unit is accomplished by the use of a template and two (2) sheet metal screws, which are provided. Mounting can be achieved without the removal of the clear cover which is secured by four (4) capture screws.
Features:
- Detects Smoke in Building HVAC Ducts
- Ships Complete with Housing and Head
- Compatible with Addressable IPA and AFC/ARC Series Panels
- SLC Class A, Class X & Class B
- Installation Without Removing the Head
- Listed Air Velocity of 100 to 4,000 ft/minute
- No Screens or Filters in Housing
- Durable Plastic Enclosure and Clear Cover
- Integrated Cover Tamper Switch
- Utilizes Simple Snap in Sampling Tubes STN Series
- One Form C Relay
- UUKL Listed for Smoke Control
- Compatible with Supervised PAD100-DRTS Remote Test Switch, MS-RA, MS-KA/R, MS-KA/P/R Remote Indicators
- Product includes 5-year warranty

Documents & Resources
PAD300-CD
The PAD300-CD is an analog addressable carbon monoxide (CO) detector compatible with any fire alarm control panel that has the Potter Addressable Device (PAD) protocol. The CO-sensing portion utilizes a proven electrochemical sensor for accurate detection of CO gas for life safety applications. The detector and base (not included) are made of a durable plastic in an off-white to blend in with the ceiling. The PAD300-CD is listed to comply with the requirements of UL 2075. The detector and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements. The detector is compatible with any of the PAD300 series detector bases and simply twists on. The PAD300-CD is addressed using DIP switches in the rear of the detector and can be easily programmed in the field without special tools.
Features:
- Carbon monoxide detection device compliant with UL 2075
- 10-year Lifespan with Built-in End-of-life Indication
- Low Profile
- Walk Test mode allows for fast easy validation of sensor operation
- Reliable Detection Technology
- LED Alarm Indicator
- Magnetic Test Switch
- Product includes 5-year warranty
- UUKL Listed for Smoke Control

Documents & Resources
PAD300-PCD
The Photoelectric Smoke detector and the Carbon Monoxide (CO)detector are both listed Analog Addressable detectors compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The CO sensing portion utilizes a proven electrochemical sensor for accurate detection of CO gas for life safety applications. The photoelectric detector complies with UL 268 7th edition enhanced smoke sensitivity tests. It has a wide sensitivity range of 1.1 to 3.5% per foot, and features drift compensation with built in dirty detector warning. The detector and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements. The detector is compatible with any of the PAD300 series detector bases and simply twists on. The PAD300-PCD is addressed using DIP switches in the rear of the detector and can be easily programmed in the field without special tools.
Features:
- Photoelectric Smoke Detection compliant with UL 268 7th Edition
- Carbon Monoxide (CO) detection compliant with UL 2075
- 10 year Carbon Monoxide detection lifespan with built in end of life indication
- Walk Test mode allows for fast easy validation of CO sensor operation
- Low profile, less than 2 inches with the base
- Wide selectable sensitivity range of 1.1 to 3.5%/foot
- Detector communicates sensitivity to control panel
- Optional locking tab to prevent unwanted removal
- Simple DIP switch address setting, no programming tool required
- LED Alarm Indicator
- Product includes 5-year warranty
- UUKL Listed for Smoke Control
- Magnetic Test Switch

Documents & Resources
PAD300-RB
The Addressable Relay Base 6” (PAD300-RB) is combination detector base with a relay module included. The base has a locking feature for the detector that may be used or removed in the field. Once the detector is removed, the relay is accessible in the bottom of the unit. The PAD300-RB provides one form C relay output. The relay is rated for 2A at 30 VDC, and 0.5A at 125VAC. The PAD300-RB provides for separation of high voltage and non-power limited connections from the power limited Signaling Line Circuit (SLC). The PAD300- RB does not consume SLC address and does not require an auxiliary power source.
Features:
- One form C relay as part of the base assembly
- Relay rating: 2A @ 30VDC, 0.5A @ 125VAC
- Works independent of the detectors attached
- May be mapped to any device connected to the Control Panel
- LED to indicate that the unit is active
- Separation included in the base for high and low voltage and
- power limited/non-power limited connections
- Terminals accept 22 to 12 AWG wire sizes
- Supports Class A, Class X and Class B wiring
- Does not require SLC Loop address
- Product includes 5-year warranty
- UUKL Listed for Smoke Control

Documents & Resources
PAD300-IB
The Isolator Base 6” (PAD300-IB) comes with an integrated isolator module included. The base has a locking feature for the detector that may be used or removed in the field. Once the head is removed, the isolator is accessible in the bottom of the unit. The isolator will open the Signaling Line Circuit down stream when a short circuit is detected. This will provide devices between the control panel and the isolator to continue to operate. The short is indicated by a steady red LED and once the short is removed the unit will return to normal operation.
Features:
- Isolator integrated into base
- Self restoring
- Red LED indication of short circuit
- Terminals accept 22 to 12 AWG wire sizes
- Supports Class A, Class X and Class B wiring
- Does not require SLC Loop address
- UUKL Listed for Smoke Control

Documents & Resources
PAD300-IM
The PAD300-IM module does not require an SLC loop address but does consume power from the SLC loop. The module provides protection against short circuits by limiting the number of affected devices. When the PAD300-IM detects a short circuit on the SLC loop, it disconnects the outgoing side of the module to prevent the short from affecting the rest of the SLC loop. The PAD300-IM includes one red LED to indicate the modules status. When the module is shorted, the LED will light continuously. Once the short is removed, the PAD300-IM will automatically restore to a cleared condition.

Documents & Resources
PAD300-HD-I
The PAD300-HD-I is a listed analog addressable rate of rise and/or fixed temperature heat detector compatible with any fire alarm control panel that has the Potter Addressable Device (PAD) protocol. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection. It comes with an integrated isolator that opens the SLC down stream when a short circuit is detected. The detector and base (not included) are made of a durable plastic in an off-white to blend in with the ceiling. The PAD300-HD-I is UL listed with a selectable fixed temperature point from 135° to 185° Fahrenheit and can be used for rate of rise applications (see detector spacing limitations below). This flexibility allows the installer to cover a wide variety of applications with a single unit. The PAD300-HD-I and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements. The detector is compatible with any of the PAD300 series detector bases and simply twists on. The PAD300-HD-I is addressed using DIP switches in the rear of the detector and can be easily programmed in the field without special tools.
Features:
- Selectable Rate of Rise and/or Fixed Heat Detector
- Low Profile
- Reliable Detection Technology
- Built in Isolation
- LED Alarm Indicator
- Ambient Temperature Listing of 32°F to 150°F
- Simple DIP Switch Address Setting, No Programming Tool Required
- Magnetic Test Switch
- Product includes 5-year warranty
- UUKL Listed for Smoke Control

Documents & Resources
PAD300-PCD-I
The Photoelectric Smoke detector and the Carbon Monoxide (CO) detector are both listed Analog Addressable detectors compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. It comes with an integrated isolator that opens the SLC down stream when a short circuit is detected. The CO sensing portion utilizes a proven electrochemical sensor for accurate detection of CO gas for life safety applications. The photoelectric detector complies with UL 268 7th edition enhanced smoke sensitivity tests. It has a wide sensitivity range of 1.1 to 3.5% per foot, and features drift compensation with built in dirty detector warning. The detector and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements. The detector is compatible with any of the PAD300 series detector bases and simply twists on. The PAD300-PCD-I is addressed using DIP switches in the rear of the detector and can be easily programmed in the field without special tools.
Features:
- Photoelectric Smoke Detection compliant with UL 268 7th edition
- Carbon Monoxide (CO) detection compliant with UL 2075
- 10 year Carbon Monoxide detection lifespan with built in end of life indication
- Low profile
- Walk Test mode allows for fast easy validation of CO sensor operation
- Built-in Isolation Circuit
- Low profile, less than 2 inches with the base
- Wide selectable sensitivity range of 1.1 to 3.5%/foot
- Detector communicates sensitivity to control panel
- Optional locking tab to prevent unwanted removal
- Simple DIP switch address setting, no programming tool required
- LED Alarm Indicator
- Product includes 5-year warranty
- UUKL Listed for Smoke Control
- Magnetic Test Switch

Documents & Resources
PAD300-PD-I
The Photoelectric Smoke Detector is a listed Analog Addressable smoke detector compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The PAD300-PD-I is a low profile smoke detector with a wide sensitivity range. The detector and base are made of a durable plastic in an off-white color to blend in with the ceiling. It comes with an integrated isolator that opens the SLC down stream when a short circuit is detected. The PAD300-PD-I has a sensitivity range of 1.1 to 3.5 % per foot and is UL listed. The PAD300-PD-I features drift compensation and has built in dirty detector warning as well. The PAD300-PD-I and the control panel communicate over a proven and robust digital communication path and the system analyzes the information at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements. The detector is compatible with any of the PAD300 series detector bases and simply twists on. The PAD300-PD-I is addressed using DIP switches in the rear of the detector and can be easily programmed in the field without special tools.
Features:
- Low profile, less than 2 inches with the base
- Wide selectable sensitivity range of 1.1 to 3.5%/foot
- Detector communicates sensitivity to control panel
- UL listed smoke calibration and sensitivity
- Optional locking tab to prevent unwanted removal
- Simple DIP switch address setting, no programming tool required
- LED alarm indicator
- Magnetic test switch
- Build in Isolation
- Product includes 5-year warranty
- UUKL Listed for Smoke Control
- UL268 7th edition compliant

Documents & Resources
PAD100-LED
The PAD100-LED uses one (1) SLC loop address when used as an addressable indicator. The module mounts on either a 4" square or double gang box. The PAD100-LED includes one red LED to indicate the modules status. In normal condition, the LED flashes when the device is being polled by the control panel. When activated, the LED will flash at a fast rate.

Documents & Resources
PAD100-DIM
The PAD100-DIM uses one (1) SLC loop address when monitoring two (2) Class B circuits or one (1) Class A circuit. The module mounts on either a 4" square or double gang box. The module is capable of monitoring two (2) separate class B circuits making it ideal for monitoring sprinkler waterflow and valve tamper switches when they are located in the same proximity. The PAD100-DIM includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel. When an input is activated, the LED will flash at a fast rate.

Documents & Resources
PAD100-MIM
The PAD100-MIM is used to monitor the status of an initiating device(s) that contain a normally open set of dry contacts. The module is enclosed in a plastic case to protect against inadvertent shorts and ground faults. The case can be mounted using a single screw. The PAD100-MIM has a status indicator LED to indicate communication and alarm condition. In normal condition, the LED flashes when the device is being polled by the control panel. When the input is activated, the LED will flash at a fast rate.

Documents & Resources
PAD100-NAC
The PAD100-NAC module uses one (1) address on an SLC Loop. The module provides a programmable source of power to supervise and control one (1) Class B or Class A Notification Appliance or one (1) Class B Releasing Circuit. The module requires and supervises a 24 VDC auxiliary power connection. The PAD100-NAC includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel.

Documents & Resources
PAD100-OROI
The PAD100-OROI uses one (1) SLC loop address when monitoring one (1) Class B circuit and providing one (1) Form C relay contact. The module mounts on either a 4" square or double gang box. The module is capable of monitoring one (1) Class B circuit. The PAD100- OROI includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel. When the input is activated, the LED will flash at a fast rate.

Documents & Resources
PAD100-RM
The PAD100-RM uses one (1) SLC loop address to provide one (1) Form C relay contact. The module mounts on either a 4" square or double gang box. The PAD100-RM includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel.

Documents & Resources
PAD100-SIM
The PAD100-SIM uses one (1) SLC loop addresses when monitoring one (1) Class B circuit. The module mounts on either a 4" square or double gang box. The module is capable of monitoring one (1) Class B circuit. The PAD100-SIM includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel. When the input is activated, the LED will flash at a fast rate.

Documents & Resources
PAD100-SM
The PAD100-SM uses one (1) SLC loop address. The module mounts on either a 4" square or double gang box. The module is capable of switching one of the two audio input channels to its audio output channel. The PAD100-SM includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel.

Documents & Resources
PAD100-TRTI
The PAD100-TRTI uses one (1) SLC loop address when monitoring two (2) Class B circuits or one (1) Class A circuit. The PAD100-TRTI also provides two (2) Form C relay contacts. The module mounts on either a 4" square or double gang box. The module is capable of monitoring two (2) separate Class B circuits making it ideal for monitoring sprinkler waterflow and valve tamper switches when they are located in the same proximity. The PAD100-TRTI includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel. When an input is activated, the LED will flash at a fast rate.

Documents & Resources
PAD100-ZM
The PAD100-ZM module uses one (1) address on an SLC Loop when monitoring two (2) Class B or one (1) Class A circuit. The module requires and supervises a 24VDC auxiliary power connection. The 24VDC power source must be either a Potter IPA series addressable panel, or a Potter PSN series power supply. The IDC may be wired Class B or Class A which is selectable by an on board DIP switch. The PAD100-ZM employs one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel. When a device is activated, the LED will flash at a fast rate.

Documents & Resources
PAD100-PSSA-PSDA
The PAD100-PSSA (Single Action) is activated by simply pulling the white "T" bar handle down. The PAD100-PSDA (Dual Action) is activated by lifting the front cover and then pulling the white "T" bar handle down. Once activated, the "T" bar cannot be reset without opening the front cover. Opening the front cover will also activate the pull station. To reset the PAD100-PS Series, use the Potter WS-93 key to unlock and open the front cover. Once the cover is open, push the "T" bar back into the normal position and re-secure the front cover.

Documents & Resources
PAD100-SPKB
The Speaker Base (PAD100-SPKB) is a wall or ceiling mount adjustable speaker that may be utilized in a variety of applications. The speaker is designed to meet code requirements for audio and voice communications. The PAD100-SPKB offers dependable evacuation signaling. The PAD100-SPKB provides a 25 or 70.7 VRMs speaker with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W or 4W. The frequency range of the PAD100-SKPB is 400-4000 Hz and is suitable for 520 Hz low frequency tone applications. The base has a locking feature for the sensor that may be used or removed in the field.
The panel will support any combination of sensors or modules on the SLC. The PAD100-SPKB does not consume an address on the loop. The PAD100-SKPB can be mounted to a 4" by 2-1/8" deep square box or the LFSBBB-W back box.
The Speaker Base is not an addressable device. Independent control of the speaker base requires a PAD100-SM speaker module.

Documents & Resources
PAD200-PCHD
The PAD200-PCHD is a listed Analog Addressable photoelectric smoke sensor, rate of rise and/or fixed temperature heat sensor and carbon monoxide (CO) sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The CO sensing portion utilizes a proven electrochemical sensor for accurate detection of CO gas for life safety applications.
Features
- Photoelectric Smoke Detection compliant with UL 268 7th Edition
- Carbon Monoxide (CO) detection compliant with UL 2075
- Heat Detection compliant with UL 268 and UL 521 7th Edition
- Walk Test mode allows for fast easy validation of CO sensor operation
- Low profile, less than 2 inches with the base
- Wide selectable sensitivity range of 1.0 to 3.5%/foot
- Temperature range of 32° F to 115° F
- Selectable Rate of Rise and/or fixed heat detector
- Fixed temperature range of 135° F to 185° F
- Sensor communicates sensitivity to control panel
- UL listed smoke calibration and sensitivity
- Optional locking tab to prevent unwanted removal
- Simple DIP switch address setting, no programming tool required
- LED alarm indicator
- Product includes a 5 year warranty
- UUKL Listed for Smoke Control

Documents & Resources
PAD100-LEDK
The PAD100-LEDK provides a mappable key-switch input making it ideal for key control of a variety of system functions. The PAD100-LEDK provides mappable red LED which can be used to indicate a variety of status conditions.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources
PAD100-DRTS
The PAD100-DRTS module does not require an SLC loop address. The PAD100-DRTS provides a supervised remote test switch for the PAD100-DUCTR duct detector. Active and Pilot LEDs provide status of the PAD100-DUCTR detector. Keyed switch allows remote testing of the PAD100-DUCTR duct detector.
For additional information on Potter Fire Alarm Systems visit our Fire Training Videos Section.

Documents & Resources

NAC Circuit

PE-HN/HS/ST
Horns and LED Strobes

PE-LFHN/LFHS
Low Frequency Sounders and Sounder Strobes

PE-SPK/SPST
Speakers and Speaker Strobes
PE-HN/HS/ST Series
The Potter PE Series feature advanced LED technology with a range of low and high candela settings for indoor wall and ceiling-mount applications. Crafted with a low-profile design, these devices seamlessly complement building interiors. Rich in features, the devices offer 6 candela settings and 3 horn patterns within a single unit. Installation is simplified with pre-wire/pre-test capabilities via a hinged mounting plate. Wall models follow a single-gang design, allowing tool-free setting changes. The PE Series is designed for 24V operations. The PE-HN can also be used in 12V applications.
- Industry’s lowest current draw, ensuring energy efficiency
- Requires fewer power supplies and smaller wire gauge, reducing wire runs
- Versatile Settings and horn patterns
- Pre-wire/pre-test capability to detect wiring and ground faults before installation.
- Finger slide switches for easy setting changes; no tools required.
- Strobe synchronization with Potter fire alarm control panels and power supplies.
- Ability to mix xenon and LED strobes in the same field of view.
- 6 field selectable settings:
- Wall: 15, 30, 75, 110, 135, 185 cd
- Ceiling: 15, 30, 75, 110, 150, 177 cd

Documents & Resources
PE-LFHN/LFHS Series
The Potter low frequency sounders and sounder strobes meet the National Fire Protection Association (NFPA 72) low frequency sounder requirements for sleeping rooms for both fire alarm and carbon monoxide (CO) signaling. In a single device, the low frequency sounders feature both low and high candela settings and alarm signals for dual applications - T3 (fire) and T4 (CO) tones.
The PE Series of LED strobes leads the industry in energy efficiency with the lowest current draw for combined high and low candela devices. Utilizing breakthrough LED technology and optical design, the PE Series achieves bestin-class efficiency, reducing overall power consumption. All strobe models feature 110 and 177 candela settings.
- Meets NFPA 72 fire and CO low frequency sounder codes for sleeping rooms in a single device
- LED Technology - Industry's lowest current draw, ensuring energy efficiency.
- Versatile Settings and Horn Patterns
- Low-profile design
- Mounting plate included with all models.
- Finger slide switches for easy setting changes; No tools required.
- Built-in level adjustment feature and snap-on grill cover.
- Strobe synchronization with Potter fire alarm control panels and power supplies.
- Ability to mix xenon and LED strobes in the same field of view.

Documents & Resources
PE-SPK/SPST Series
The Potter PE Series of speakers feature high fidelity sound output, and speaker strobe models include advanced power saving LED technology with a full range of candela settings for indoor wall and ceiling mount applications. With a wide frequency range of 300 to 8000 Hz, the PE-SPK and PE-SPST feature leading technology with crisp, clear voice messages and tone signaling, ideal for emergency communications, mass notification, voice evacuation, and fire alarm.
- High intelligibility at minimum wattage across a frequency range of 300 to 8000 Hz
- LED technology means low current draw, fewer power supplies and smaller wire gauge required and reduced wire runs.
- 1/8 watt up to 2 watts (5W - 70V)
- 6 field selectable settings:
- Wall: 15, 30, 75, 110, 135, 185 cd
- Ceiling: 15, 30, 75, 110, 150, 177 cd

Documents & Resources

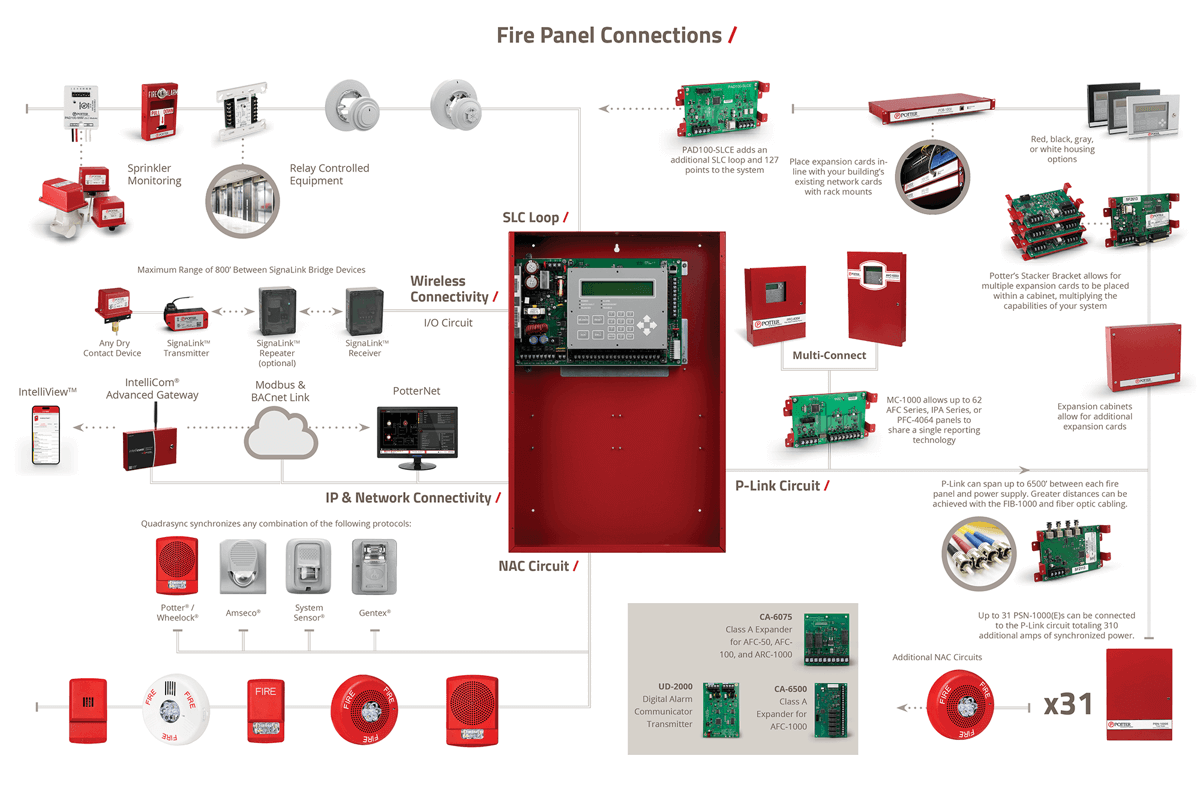

Fire Panel Connections
Click the image below to view AFC fire panel connections.

Life Safety Software

PotterNet Graphical Software
The PotterNet Fire and Facility Supervising Station is a desktop application that facilitates the monitoring and control of IPA, AFC/ARC, and PFC-4064 fire alarm control panels. It utilizes a distributed client-server model for communication in order to reduce or eliminate single points of failure.
Available in both UL and non-UL Listed versions, PotterNet will monitor all compatible panels in a single building, on a local campus, or across multiple sites worldwide. Configurations with as many as 1,000 panels and 15 graphical PotterNet stations can address your largest system needs.
Learn More
IntelliView® Cloud Monitoring
Monitor your fire panel from anywhere in the world and take full advantage of the industry leading smart features of the Potter IntelliView dashboard. Simply connect to the building's networked internet connection and register your device. You will be able to remotely view the status of your Potter connected systems from your computer, tablet, or smartphone.
Learn More
Panel Programmer
Once connected to a network, the panel configuration software allows custom programming and configuration for all points using the network or a stand-alone computer. Fine-tune device behavior characteristics or create mapping zones for a more sophisticated fire protection system. All this is bundled in an easy-to-use drag and drop interface.
Learn MoreIP & Networking

Panel Networking
Potter's peer-to-peer networking solution allows all new and existing IPA Series, AFC Series, and PFC-4064 fire alarm panels to communicate on a dedicated ethernet or fiber network. When networked, users can allow point control between panels, use a single panel for central station reporting for a network, and employ network annunciators for total system control on up to 200 panels.
Learn More
IP Connectivity
With today's ever-expanding means of communication, it's important to be able to incorporate the same technology into your fire control system. We took this technology into account when we designed IP connectivity within our new panels.
By eliminating the cost of phone lines, save big when using your building's existing network infrastructure. Additionally, the speed of IP communication allows for event information to be sent to the central station within seconds. Every Potter IP-enabled fire alarm system has an onboard IP communicator that is listed to communicate with the Sur-Gard III IP receiver.
Learn More
Emails & Reminders
Potter IP-enabled fire alarm systems are email ready. History and Detector Status reports can be sent on demand as either a text or Excel® file for a professional look. The status events of the panel can be immediately emailed allowing users to be proactive in servicing customers.
Reports and the configuration file can be requested from the panel at any time by sending an email directly to the panel. Additionally, enhance your business by creating email reminders for your customers to schedule system tests or even to purchase new batteries.
Learn MoreAFC System Features

Programmable EOLs
NACs and I/Os have programmable EOLs between 2.0k and 27k. This can be achieved manually by installing the resistor and using the panel's LEARN function, or automatically through the programming software.

Dipswitch Programming
Potter Protocol devices are now programmed through easy-to-use dip-switches. This makes it easier than ever to address SLC devices on-site and requires no external hardware.

Multi-Connect
The MC-1000 Multi-Connect Module allows up to 62 client fire panels to communicate with a remote/central station through a single control panel designated as the host. This can eliminate the need for multiple phone lines and monitoring accounts. Each MC-1000 module includes terminal connections for two client panels.

Quadrasync
Our patented Quadrasync technology allows four different brands of strobes to be synced together using a Potter fire alarm control panel or PSN Series power supply. There is no need for the panel and devices to utilize the same protocol, making this technology a great feature for retrofit applications. Quadrasync works with the Potter®/Gentex®, Amseco®, System Sensor®, and Wheelock® protocols.

Designed & Assembled in the USA
Potter prides itself on offering a full line of fire alarm equipment assembled in St. Louis, Missouri and Branford, Connecticut. With engineering teams located in Maple Grove, Minnesota; Moline, Illinois; and Louisville, Kentucky; Potter continues to provide the latest innovations direct from America's heartland.
